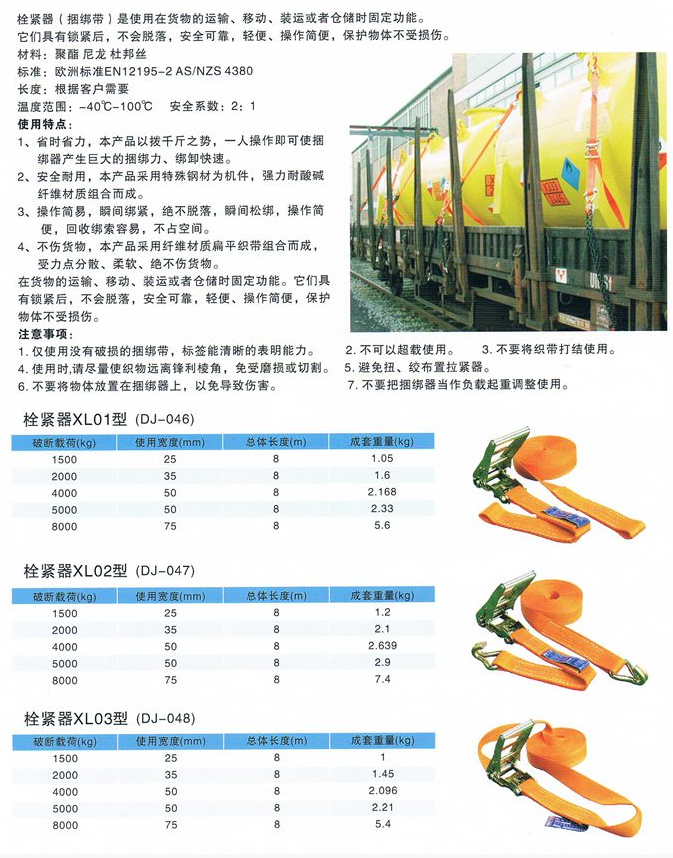

拴緊器系列
一、合成纖維收緊器技術(shù)介紹
1、栓緊器適用于運(yùn)輸中貨物的捆綁與拴緊及拖車自救用。
2、可根據(jù)實際需要配備末端件（雙排鉤、三角形等）。
3、請注意：不能用于起吊貨物用。
1.Lashing systems are used for light-duty load moving in-house as well as secure heavy loads on truck beds for highway transport.
2.Corresponding end fittings are avallable.
3.Lashing systems are not designed to be used for lifting of any objects.
<
| 編碼 | 拉緊能力（KG） | 織帶寬度（mm） | 破斷拉力（KG） | 固定長度（m） | |||
| RTD25-040 | 400 | 25 | 800 | 0.3 | 400 | 800 | 800 |
| RTD25-050 | 500 | 25 | 1000 | 0.3 | 500 | 1000 | 1000 |
| RTD25-075 | 750 | 35 | 1500 | 0.5 | 750 | 1500 | 1500 |
| RTD25-100 | 1000 | 35 | 2000 | 0.5 | 1000 | 2000 | 2000 |
| RTD25-150 | 1500 | 35 | 3000 | 0.5 | 1500 | 3000 | 3000 |
| RTD25-250 | 2500 | 50 | 5000 | 0.5 | 2500 | 5000 | 5000 |
| RTD25-350 | 3500 | 75 | 5000 | 0.7 | 3500 | 7000 | 7000 |
| 規(guī)格 specifications | 破斷載荷 Breaking load (kg) | 適用寬度 Width (mm) | A (mm) | B (mm) | C (mm) | D (mm) | 重量 weihgt (kg) |
| C-015 | 1500 | 25 | 27 | 130 | 53 | 58 | 0.39 |
| C-03 | 3000 | 38 | 38 | 154 | 70 | 72 | 0.60 |
| C-05 | 5000 | 50 | 50 | 230 | 90 | 101 | 1.10 |
| C-08 | 8000 | 75 | 75 | 300 | 148 | 154 | 3.10 |
